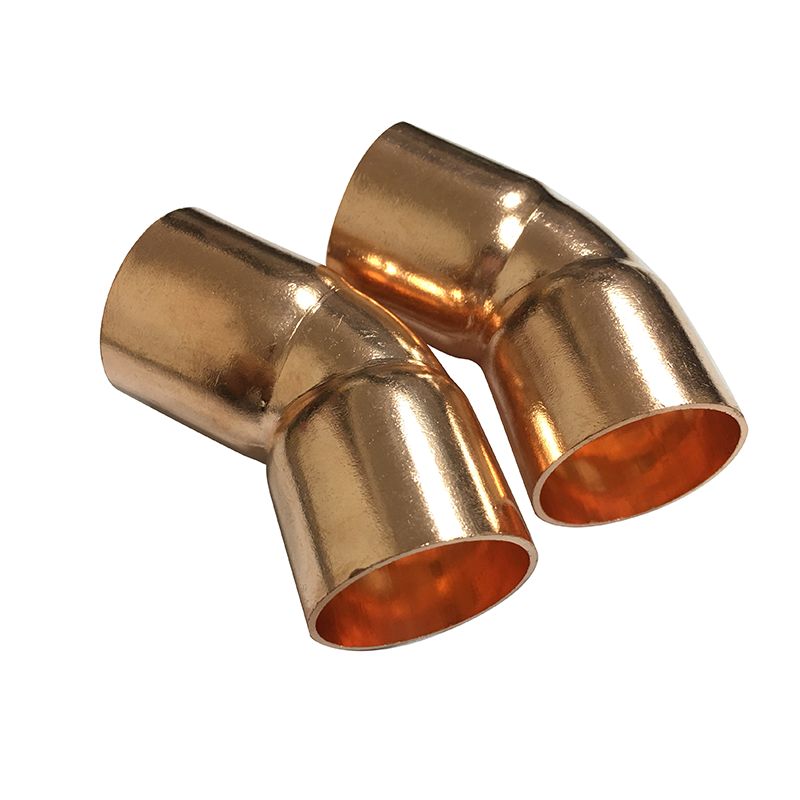

As the professional manufacturer, we would like to provide you Copper Pressure 45-Degree Cup Elbow Fitting. We have taken into account the environmental protection needs and usage needs of customers, so we have passed the ROHS and REACH environmental protection testing certification. This product is not only environmentally friendly, but also very convenient to use and has strong pressure resistance. The product appearance design is also beautiful, which can enhance the overall aesthetics.
As the professional manufacturer, we would like to provide you Copper Pressure 45-Degree Cup Elbow Fitting. The production of Copper Pressure 45-Degree Cup Elbow Fitting strictly follows GB/T11618-1999 and other domestic and international standards to ensure stable and reliable product quality. Its excellent corrosion resistance, compressive strength and dimensional accuracy make it widely used in petrochemical, food and medicine and other fields.
The Copper Pressure 45-Degree Cup Elbow Fitting is an efficient pipe connection solution that can realize the branching and extension of pipes. Copper tee crimping fittings, with their excellent corrosion resistance and plasticity, are widely used in water supply and drainage systems, HVAC systems and other fields in residential and commercial buildings. They are an ideal choice for fast and convenient connection of copper pipes.
In addition, Copper Pressure 45-Degree Cup Elbow Fitting manufacturers also provide customization services, can be customized according to customer needs of various specifications of copper accessories, including but not limited to a 90 - degree Angle 180 degrees, U bend tee, , diameter reducing T Y type pants tees, , size reducer, , filter drier, beam, , , filling valve air conditioning ales liquid storage tube, etc. The provision of this custom service, further broadens the application range of copper 45° elbow, to meet the diversified needs of the market
|
Model |
SIZE |
A(Φ) |
B |
T |
X |
REMARKS |
|
(mm) |
||||||
|
GE45-20 |
19.05 |
19.12±0.05 |
14.0+1.0 |
0.90 |
7.0 |
|
|
GE45-25 |
25.40 |
25.49±0.07 |
17.0+1.0 |
1.09 |
10.0 |
|
|
GE45-32 |
31.75 |
31.84±0.07 |
12.0+1.5 |
1.09 |
14.0 |
|
|
GE45-40 |
38.10 |
38.22±0.10 |
12.0+1.5 |
1.09 |
17.0 |
|
|
GE45-50 |
50.80 |
50.92±0.10 |
12.0+1.5 |
1.09 |
21.0 |
|
|
GE45-65 |
63.50 |
63.75±0.20 |
12.0+1.5 |
1.09 |
28.0 |
|
|
GE45-80 |
76.20 |
76.45±0.20 |
15.0+1.5 |
1.47 |
34.0 |
|
|
GE45-100 |
101.60 |
101.85±0.20 |
15.0+1.5 |
1.47 |
43.0 |
|
|
GE45-125 |
127.00 |
127.25±0.20 |
15.0+2.0 |
2.00 |
68.0 |
|
|
GE45-150 |
152.40 |
152.75±0.30 |
20.0+2.0 |
2.50 |
83.0 |
