Right Angle elbow
  • Right Angle elbowRight Angle elbow

Right Angle elbow

You can rest assured to buy the Gangxin Right Angle elbow produced by our factory. This product is made with the latest environmental protection technology, high product density, strong pressure resistance, in line with ROHS and REACH environmental protection testing, beautiful appearance, convenient installation size, advanced technology;

Send Inquiry

Product Description

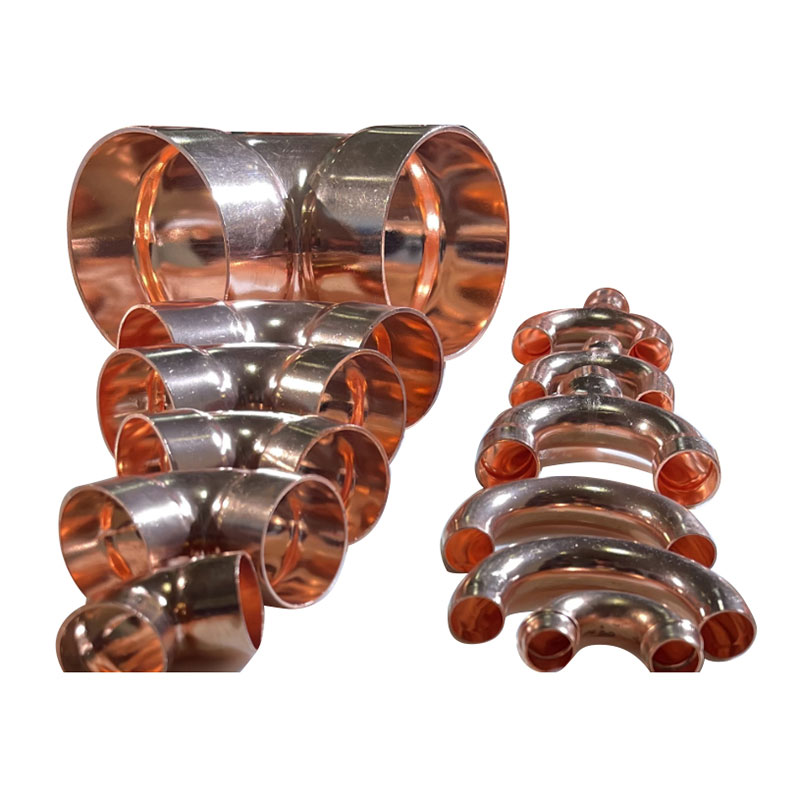

Right Angle elbow is a kind of pipe assembly used to connect copper pipe, ‌ is mainly used in refrigeration, ‌ air conditioning, ‌ water heating and other systems, ‌ to achieve 90 degree right Angle steering between the pipes. ‌ This kind of elbow is usually made of copper, ‌ has good thermal conductivity and corrosion resistance, ‌ is suitable for pipe systems that need to bend or turn frequently. ‌ copper 90° elbow has a wide range of applications, ‌ including but not limited to air conditioning, ‌ refrigeration or copper water pipe connection. ‌ its design and manufacture in accordance with certain national and international standards, ‌ such as American standard ASME B16.22, ‌ European standard EN1254-1, ‌ British standard BS864 and Australian standard AS364, ‌ to ensure the safety and interchangeability of products. ‌ In addition, the ‌ Right Angle elbow is advanced in manufacturing technology. ‌ is a new extrusion forming technology to increase its density ‌. ‌ The compressive strength test shows that the pressure of ‌ copper pipe joint is up to 32Mpa, ‌ is very safe to use in conventional pressure pipelines. ‌ These elbows are not only suitable for direct connection of copper pipe, ‌ also suitable for reducing connection, ‌ is the connection between different diameters of copper pipe, ‌ available in a variety of specifications and types to meet different application needs. ‌ Because copper has good electrical and thermal conductivity, ‌ Right Angle elbow also has a certain application in the field of electrical and electronic, ‌ as part of the circuit connection ‌ ‌ ‌


Specifications of the Right Angle elbow

Model

SIZE

A(Φ)

B

T

X

REMARK

(mm)

GX-W-01

9.52

9.52+0.15

9.0+1.0

0.80

12.8

GX-W-02

12.70

12.77+0.15

9.0+1.0

0.80

14.4

GX-W-03

15.88

15.95+0.15

11.0+1.0

0.90

15.9

GX-W-04

19.05

19.12+0.15

15+1.0

0.90

17.5

GX-W-05

22.20

22.32+0.15

15+1.0

0.90

19.1

GX-W-06

25.40

25.49+0.15

15+1.0

1.09

20.7

GX-W-07

28.60

28.72+0.15

20+1.0

1.09

22.3

GX-W-08

31.75

31.84+0.15

25+1.5

1.09

23.9

GX-W-09

35.00

35.1+0.15

12.0+1.5

1.09

25.5

GX-W-10

38.10

38.22+0.15

12.0+1.5

1.09

27.1

GX-W-11

41.30

41.4+0.15

12.0+1.5

1.09

28.7

GX-W-12

42.00

42.1+0.15

12.0+1.5

1.09

29.0

GX-W-13

50.80

50.92+0.15

12.0+1.5

1.09

33.4

GX-W-14

54.00

54.1+0.15

12.0+1.5

1.09

35.0

GX-W-15

63.50

63.65+0.15

12.0+1.5

1.09

39.8

GX-W-16

66.70

66.85+0.15

12.0+1.5

1.09

41.4

GX-W-17

76.20

76.45+0.15

15.0+2.0

1.47

46.1

GX-W-18

79.40

79.52+0.15

15.0+2.0

1.47

47.7

GX-W-19

101.60

101.85+0.15

15.0+2.0

1.47

58.8

GX-W-20

105.00

105.25+0.15

15.0+2.0

1.47

60.5

GX-W-21

127.00

127.25+0.15

15.0+2.0

2.00

71.5

GX-W-22

152.40

152.65+0.15

20.0+2.0

2.50

84.2
